Woven Wire Mesh of Various Materials! Support Processing and Customization! Real Source Factory and manufacturer ! Saving Money and Time for Customers!
1 Years
| Ask Lasest Price | |
| Model Number : | HH-CWM |
| Certification : | ISO9001-2015 |
| Payment Terms : | L/C,T/T,Western Union |
| Supply Ability : | 100000 sqaure meters per 20 days |
| Delivery Time : | within 7 work days |

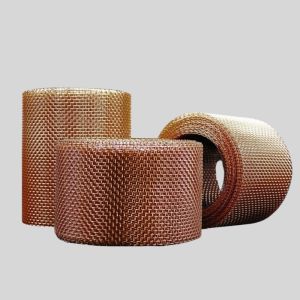

Copper wire mesh is the most widely used copper alloy wire mesh in the industry, which is woven from 99.95% copper wire. The biggest benefit of copper wire mesh is its high electrical and thermal conductivity, which makes it widely used in many electrical applications, such as RFI shielding, Faraday cages, signal shielding, HVAC, etc.
As a professional manufacturer of copper wire mesh, we can meet your various customization needs. This includes wire diameter, mesh size, weaving method, filtration level, mesh count and width, etc., and we can provide them in the form of rolls or sliced into any shape and size.
Serial Number | Mesh Count | Wire Diameter | Mesh Hole Size | Thickness | Maximum Width | Opening rate | ||
|---|---|---|---|---|---|---|---|---|
Inches | mm | Inches | mm | mm | mm | % | ||
SS-17 | 20 × 20 | 0.0200 | 0.5080 | 0.0300 | 0.7600 | 1.02 | 2000 | 35.9 |
SS-18 | 20 × 20 | 0.0160 | 0.4060 | 0.0340 | 0.8600 | 0.81 | 2000 | 46.1 |
SS-19 | 24 × 24 | 0.0140 | 0.3560 | 0.0277 | 0.7000 | 0.71 | 2000 | 43.9 |
SS-20 | 30 × 30 | 0.0130 | 0.3300 | 0.0203 | 0.5200 | 0.66 | 2000 | 37.4 |
SS-21 | 30 × 30 | 0.0120 | 0.3050 | 0.0213 | 0.5400 | 0.61 | 2000 | 40.8 |
SS-22 | 30 × 30 | 0.0090 | 0.2290 | 0.0243 | 0.6200 | 0.46 | 2000 | 53.3 |
SS-23 | 35 × 35 | 0.0110 | 0.2790 | 0.0176 | 0.4500 | 0.56 | 2000 | 38.1 |
SS-24 | 40 × 40 | 0.0100 | 0.2540 | 0.0150 | 0.3800 | 0.51 | 2000 | 35.9 |
SS-25 | 50 × 50 | 0.0090 | 0.2290 | 0.0110 | 0.2800 | 0.46 | 2000 | 30.3 |
SS-26 | 50 × 50 | 0.0080 | 0.2030 | 0.0120 | 0.3100 | 0.41 | 2000 | 36.5 |
SS-27 | 60 × 60 | 0.0075 | 0.1910 | 0.0092 | 0.2300 | 0.38 | 2000 | 29.8 |
SS-28 | 60 × 60 | 0.0070 | 0.1780 | 0.0097 | 0.2500 | 0.36 | 2000 | 34.1 |
SS-29 | 70 × 70 | 0.0065 | 0.1650 | 0.0078 | 0.2000 | 0.33 | 2000 | 30.0 |
SS-30 | 80 × 80 | 0.0055 | 0.1400 | 0.0070 | 0.1800 | 0.28 | 2000 | 31.6 |
| SS-31 | 80 × 80 | 0.0047 | 0.1200 | 0.0077 | 0.1970 | 0.24 | 2000 | 38.6 |
| SS-32 | 90 × 90 | 0.0050 | 0.1270 | 0.0061 | 0.1600 | 0.25 | 2000 | 31.1 |
| SS-33 | 100 × 100 | 0.0045 | 0.1140 | 0.0055 | 0.1400 | 0.23 | 2000 | 30.4 |
| SS-34 | 100 × 100 | 0.0040 | 0.1020 | 0.0060 | 0.1500 | 0.20 | 2000 | 35.4 |
| SS-35 | 100 × 100 | 0.0035 | 0.0890 | 0.0065 | 0.1700 | 0.18 | 2000 | 43.1 |
| SS-36 | 110 × 110 | 0.0040 | 0.1016 | 0.0051 | 0.1295 | 0.20 | 2000 | 31.4 |
| SS-37 | 120 × 120 | 0.0037 | 0.0940 | 0.0046 | 0.1168 | 0.19 | 2000 | 30.7 |
| SS-38 | 150 × 150 | 0.0026 | 0.0600 | 0.0041 | 0.1041 | 0.12 | 2000 | 40.2 |
| SS-39 | 160 × 160 | 0.0025 | 0.0635 | 0.0038 | 0.0965 | 0.13 | 2000 | 36.4 |
| SS-40 | 180 × 180 | 0.0023 | 0.0584 | 0.0033 | 0.0838 | 0.12 | 2000 | 34.7 |
| SS-41 | 200 × 200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 0.11 | 2000 | 33.7 |
99.95%+ Pure copper wire mesh.
Ductility and softness and flexibility make copper wire mesh easy to process, connect and install.
Has the thermal and electrical conductivity second only to silver mesh, but the cost is lower than silver.
Durability and maintenance-free features make it the first choice for many mechanical and industrial applications.
Excellent corrosion resistance, the oxide film further enhances this.
Copper mesh has a melting point of 1083 ℃ (1981 ℉). It does not catch fire through floors, walls, or ceilings. It is more suitable for architectural applications in fire resistance.
Recyclability. Like other metals, copper is 100% recyclable.
The unique metallic color makes the copper wire mesh very suitable for use as decorative products in architectural applications.
Copper wire mesh is very common in commercial and residential projects, such as insect screen, fireplace screen, infill panel, decorative wall panel, and more. Some artists, sculptors, carpenters or metal artisans also like copper mesh very much, because it not only has a natural metallic color but also can be made into various complex shapes for decorative applications.
Faraday Cage, EMI & RFI Shielding, Insect Screen, Cabinet Screen, Fireplace Screen
Gutter and Soffit Screen, Wall Panels,Wood Working, Papermaking, Electric Heaters
Aerospace, Marine Technology, Pest control Fumigation, Liquid Filtration & Particle Separation,Scientific and Laboratory Uses
|
|
