Woven Wire Mesh of Various Materials! Support Processing and Customization! Real Source Factory and manufacturer ! Saving Money and Time for Customers!
1 Years
| Ask Lasest Price | |
| Brand Name : | HUIHAO KASITE |
| Model Number : | HH-WMR |
| Certification : | ISO9001-2015 |
| Price : | USD14-USD28/M2 |
| Payment Terms : | T/T |
| Supply Ability : | 6000 SQUARE METERS PER 30 DAYS |
| Delivery Time : | 7 WORK DAYS |

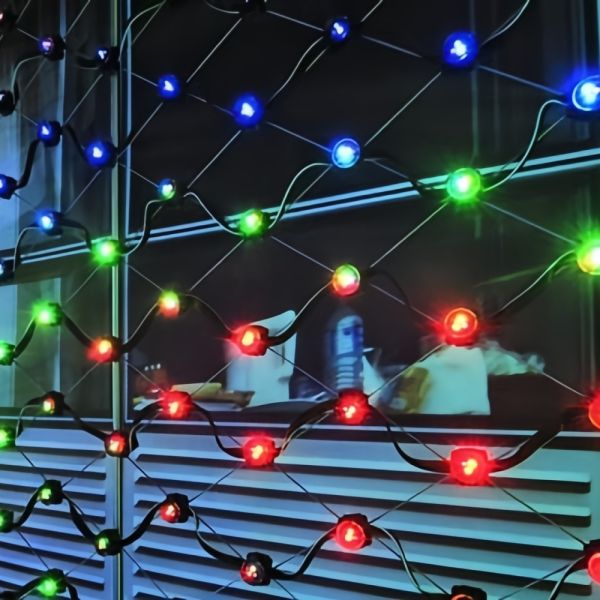

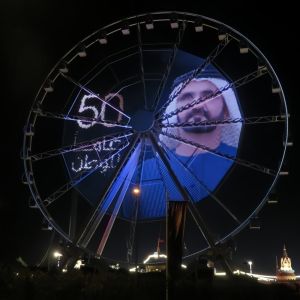

Individually controllable LED dots, combined with a specially developed five-core ribbon cable, are applied at nodes of stainless steel wire mesh, tensioned between borders of cables or steel frames. They form an arbitrarily large illuminated image area for two or three-dimensional multimedia presentations.
The main material of ss cable mesh are ss cable and various of ferrules. The cable is made from high quality stainless steel, and the ferrules are made from stainless steel, Aluminum, copper, etc.
Mesh Types | Cable Diameter | Cable Strand | Material | Accessiroes |
Inter woven type | 1.2mm, 1.5mm, 1.6mm, 2.0mm | 7*7 | SS304 SS304L SS316 SS316L | Standard Ferrule Aluminum Ferrul |
Ferrule type | 1.2mm, 1.5mm, 1.6mm, 2.0mm | 7*7 | ||
Inter woven type | 2.0mm, 2.5mm, 3.0mm, 3.2mm, 4.0mm | 7*19 | ||
Ferrule type | 2.0mm, 2.5mm, 3.0mm, 3.2mm, 4.0mm, 4.2mm, 5.0mm | 7*19 |
| Item No.s | Cable Diameter | Mesh Opening Size(W×H) | ||
| inch | mm | inch | mm | |
| BZ-32120F | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 |
| BZ-32102F | 1/8 | 3.2 | 4 x 6.9 | 102 x 176.7 |
| BZ-3290F | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 |
| BZ-3276F | 1/8 | 3.2 | 3 x5.2 | 76 x 131.6 |
| BZ-3251F | 1/8 | 3.2 | 2 x3.46 | 51 x88.3 |
| BZ-24102F | 3/32 | 2.4 | 4x6.9 | 102x176.7 |
| BZ-2490F | 3/32 | 2.4 | 3.55x6.15 | 90x 156 |
| BZ-2476F | 3/32 | 2.4 | 3 x 5.2 | 76x 131.6 |
| BZ-2460F | 3/32 | 2.4 | 2.4x 4.16 | 60x 104 |
| BZ-2451F | 3/32 | 2.4 | 2x3.46 | 51 x 88.3 |
| BZ-2076F | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 |
| BZ-2060F | 5/64 | 2.0 | 2.4x 4.16 | 60 x 104 |
| BZ-2051F | 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 |
| BZ-2038F | 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 |
| BZ-1676F | 1/16 | 1.6 | 1.2 x2.08 | 76 x 131.6 |
| BZ-1651F | 1/16 | 1.6 | 2x 3.46 | 51 x 88.3 |
| BZ-1638F | 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 |
| BZ-1630F | 1/16 | 1.6 | 1.2x2.08 | 30 x 52 |
| BZ-1625F | 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 |
| BZ-1238F | 3/64 | 1.2 | 1-1/2x2.6 | 38 x 65.8 |
| BZ-1230F | 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 |
| BZ-1225F | 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 |
| BZ-1220F | 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 |
HUIHAO is committed to providing customers with a full range of personalized services. Our team will provide you with professional suggestions and support as well as products that provide comfort and safety protection. We always adhere to the concept of design excellence and we are committed to using the most advanced technology and the highest safety standards to ensure the high quality of our products. We have paid great attention on sustainability, which means that we are constantly exploring new materials and technologies to ensure that our products meet the highest standards in terms of environmental protection. Our professional team will continue to push our design philosophy and advocate sustainability, technology and safety and work towards a greener future.
|
|
